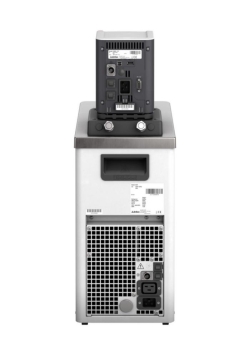

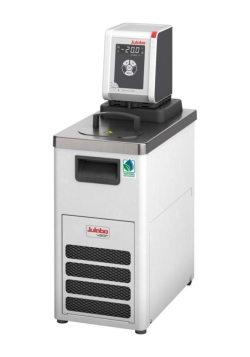

Refrigerated circulator CORIO™ CP-450F
Refrigerated circulators with enhanced, flexible pump performance and a working temperature range up to 200 °C. Temperature control is possible either in the internal bath or in a connected external application.
Scope of supply: Refrigerated circulator, mains power cable, connection box, bath cover, connecting cable, refrigerator, hose olives 8 and 12 mm
- Bright, white, easy-to-read display
- Easy pump switching between internal and external circulation
- External pump connections (M16x1)
- Infinitely adjustable pressure pump
- USB connection
- RS232 interface
- Timer adjustable up to 999 minutes
- Space-saving cooling coil design yields more usable space in the bath tank
- Stainless steel bath tank including bath lid and drain tap
- Removable ventilation grid
- Refrigeration unit without lateral ventilation openings
- Unique early warning system for low liquid level
- Class III (FL) acc. to DIN 12876-1
Scope of supply: Refrigerated circulator, mains power cable, connection box, bath cover, connecting cable, refrigerator, hose olives 8 and 12 mm
| Material bath: | Stainless steel |
| Temperature: | -30 ... 200 °C |
| Temperature stability: | ±0,03 °C |
| Max. flow rate: | 27 l/min |
| Max. delivery pressure: | 0.7 bar |
| Type of display: | LED |
| With lid: | Yes |
| Cooling capacity at 20 °C: | 0,44 kW |
| Heating capacity: | 2 kW |
| Opening (WxD): | 130 x 150 mm |
| Bath depth: | 150 mm |
| Ext. dim. (WxDxH): | 230 x 400 x 650 mm |
| Power supply: | 200 ... 230 V, 50/60 Hz |
| Weight: | 25.6 kg |
| IP code: | IP 21 |
TypeVolume bathRefrigerantPlug typePKPrice/Unit
EUR
not in stockTypeCP-450F
Volume bath3 ... 4 l
RefrigerantR449A
Plug typeEU
PK1
1 VE5.874,00
€
EUR6.990,06€
EUR incl. Taxplease selectAdd to
basket
basket
not in stockTypeCP-450F
Volume bath3 ... 4 l
RefrigerantR290
Plug typeEU
PK1
1 VE5.874,00
€
EUR6.990,06€
EUR incl. Taxplease selectAdd to
basket
basket
Code: 6.325 220 not in stock
not in stockTypeCP-450F
Volume bath3 ... 4 l
RefrigerantR290
Plug typeUK
PK1
1 VE5.874,00
€
EUR6.990,06€
