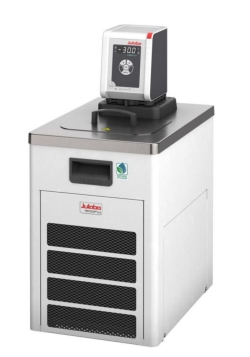

Refrigerated circulator CORIO™ CP-1200F
Refrigerated circulators with enhanced, flexible pump performance and a working temperature range up to 200 °C. Temperature control is possible either in the internal bath or in a connected external application.
Scope of supply: Refrigerated circulator, mains power cable, connection box, bath cover, connecting cable, refrigerator, hose olives 8 and 12 mm
-With natural refrigerant R1270
- Bright, white, easy-to-read display
- Easy pump switching between internal and external circulation
- External pump connections (M16x1)
- Infinitely adjustable pressure pump
- USB connection
- RS232 interface
- Timer adjustable up to 999 minutes
- Space-saving cooling coil design yields more usable space in the bath tank
- Stainless steel bath tank including bath lid and drain tap
- Removable ventilation grid
- Refrigeration unit without lateral ventilation openings
- Unique early warning system for low liquid level
- Class III (FL) acc. to DIN 12876-1
Scope of supply: Refrigerated circulator, mains power cable, connection box, bath cover, connecting cable, refrigerator, hose olives 8 and 12 mm
-With natural refrigerant R1270
| Material bath: | Stainless steel |
| Temperature: | -50 ... 200 °C |
| Temperature stability: | ±0,03 °C |
| Max. flow rate: | 27 l/min |
| Max. delivery pressure: | 0.7 bar |
| Type of display: | LED |
| With lid: | Yes |
| Refrigerant: | R1270 |
| Cooling capacity at 20 °C: | 1.24 kW |
| Heating capacity: | 2 kW |
| Opening (WxD): | 180 x 130 mm |
| Bath depth: | 150 mm |
| Ext. dim. (WxDxH): | 330 x 470 x 700 mm |
| Power supply: | 200 ... 230 V, 50/60 Hz |
| Plug type: | EU |
| IP code: | IP 21 |
TypeVolume bathWeight
kg
PKPrice/UnitEUR
not in stockTypeCP-1200F
Volume bath5 ... 7.5 l
Weight
kg
42kg
PK1
1 VE8.556,00
€
EUR10.181,64€
EUR incl. Taxplease selectAdd to
basket
basket
not in stockTypeCP-1200FW
Volume bath5 ... 7.5 l
Weight
kg
51.5kg
PK1
1 VE10.451,00
€
EUR12.436,69€
EUR incl. Taxplease selectAdd to
basket
basket
415 VE in stock
