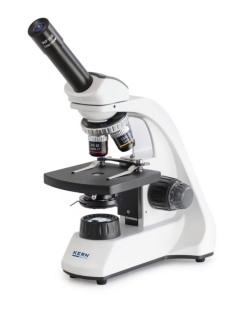

Light Microscopes Educational-Line OBT

The fully equipped all-round compound microscope for school, training and laboratories.

-Monocular and Binocular
-Widefield Eyepiece: WF 10x/18 mm
-Diopter adjustment one-sided (for binocular models)
-Coarse and fine focussing on both sides
-OBT 101: simple 0.65 condenser lens with adjustable aperture diaphragm, triple nosepiece
-OBT 102 - 106: Abbe 1,25 condensor focussed with aperture diaphragm, quadruple nosepiece
-Dimmable 1 W LED illumination
-Dust Cover and manual instruction included
-Optionally available are various color filters, as well as eyepieces with pointer needle or 0.1 mm scale

Inclination angle tube:	45°
Type of illumination:	Transmitted light
Light type:	LED
Dimensions (WxDxH):	195 x 147 x 325 mm
Weight:	2.5 kg
Power supply:	230 V, 50 Hz

Item added to basket.

Light Microscopes Educational-Line OBT

TypeTubeRevolving nosepieceMagnification
objectivesCondenserPK Price/Unit

OBT 101Code: 4.670 973

not in stockMonocular3-fold4x, 10x, 40x0,651 195,00

232,05

incl. Tax Add to
basket

OBT 102Code: 4.670 974

not in stockMonocular4-fold4x, 10x, 40xAbbe 1,251 215,00

255,85

incl. Tax Add to
basket

OBT 103Code: 4.670 975

not in stockMonocular4-fold4x, 10x, 40xAbbe 1,251 250,00

297,50

incl. Tax Add to
basket

OBT 104Code: 4.670 976

not in stockBinocular4-fold4x, 10x, 40xAbbe 1,251 335,00

398,65

incl. Tax Add to
basket

OBT 105Code: 4.670 977

not in stockMonocular4-fold4x, 10x, 40x, 100xAbbe 1,251 275,00

327,25

incl. Tax Add to
basket

OBT 106Code: 4.670 978

not in stockBinocular4-fold4x, 10x, 40x, 100xAbbe 1,251 355,00 € 247,00 € 293,93 € incl. Tax Add to
basket

Code: 4.670 973

not in stock

TypeOBT 101

TubeMonocular

Revolving nosepiece3-fold

Magnification objectives4x, 10x, 40x

Condenser0,65

1 VE195,00

EUR232,05

EUR incl. Tax

please selectAdd to
basket

Code: 4.670 974

not in stock

TypeOBT 102

TubeMonocular

Revolving nosepiece4-fold

Magnification objectives4x, 10x, 40x

CondenserAbbe 1,25

1 VE215,00

EUR255,85

EUR incl. Tax

please selectAdd to
basket

Code: 4.670 975

not in stock

TypeOBT 103

TubeMonocular

Revolving nosepiece4-fold

Magnification objectives4x, 10x, 40x

CondenserAbbe 1,25

1 VE250,00

EUR297,50

EUR incl. Tax

please selectAdd to
basket

Code: 4.670 976

not in stock

TypeOBT 104

TubeBinocular

Revolving nosepiece4-fold

Magnification objectives4x, 10x, 40x

CondenserAbbe 1,25

1 VE335,00

EUR398,65

EUR incl. Tax

please selectAdd to
basket

Code: 4.670 977

not in stock

TypeOBT 105

TubeMonocular

Revolving nosepiece4-fold

Magnification objectives4x, 10x, 40x, 100x

CondenserAbbe 1,25

1 VE275,00

EUR327,25

EUR incl. Tax

please selectAdd to
basket

Code: 4.670 978

not in stock

TypeOBT 106

TubeBinocular

Revolving nosepiece4-fold

Magnification objectives4x, 10x, 40x, 100x

CondenserAbbe 1,25

1 VE355,00 € 247,00 € EUR293,93 €EUR incl. Tax

please selectAdd to
basket

: Marked prices are special prices valid until 31/03/2026.

Type OBT 101

Tube Monocular

Revolving nosepiece 3-fold

Magnification 4x, 10x, 40xobjectives

Condenser 0,65

Cat. No. 4.670 973

Type OBT 102

Tube Monocular

Revolving nosepiece 4-fold

Magnification 4x, 10x, 40xobjectives

Condenser Abbe 1,25

Cat. No. 4.670 974

Type OBT 103

Tube Monocular

Revolving nosepiece 4-fold

Magnification 4x, 10x, 40xobjectives

Condenser Abbe 1,25

Cat. No. 4.670 975

Type OBT 104

Tube Binocular

Revolving nosepiece 4-fold

Magnification 4x, 10x, 40xobjectives

Condenser Abbe 1,25

Cat. No. 4.670 976

Type OBT 105

Tube Monocular

Revolving nosepiece 4-fold

Magnification 4x, 10x, 40x, 100xobjectives

Condenser Abbe 1,25

Cat. No. 4.670 977

Type OBT 106

Tube Binocular

Revolving nosepiece 4-fold

Magnification 4x, 10x, 40x, 100xobjectives

Condenser Abbe 1,25

Cat. No. 4.670 978

Light Microscopes Educational-Line OBTKern & SohnAlternate products:
