Heating circulator bath DYNEO™ DD-BC.D, with RS232 interface

For internal and external applications. With powerful components and a large, easy-to-read coloured TFT display. Operation is simple and intuitive via the central controller on the front of the device.

Easy switching between internal and external circulation
Integrated cooling coil for counter-cooling
Built-in drain tap
Integrated programmer for 8 x 60 program steps
Continuously adjustable, powerful pressure pump
Pump connections M16 x 1 (outer thread)
USB interface
External Pt100 sensor connection
High-quality bath tanks made of stainless steel
Class III (FL) acc. to DIN 12876-1

2 hose connectors for 8 and 12 mm I.W. and bath lid included.

Material bath:	Stainless steel
Temperature:	20 ... 200 °C
Temperature stability:	±0,01 °C
Max. flow rate:	27 l/min
Max. delivery pressure:	0.7 bar
Type of display:	TFT
Programmable:	Yes
With lid:	Yes
Heating capacity:	2 kW
Power supply:	200 ... 230 V, 50/60 Hz

Item added to basket.

Heating circulator bath DYNEO™ DD-BC.D, with RS232 interface

TypeVolume bathOpening (WxD)Bath depth

Ext. dim.
(WxDxH)Weight

PKPrice/Unit

DD-BC4.DCode: 4.663 247

not in stock3 ... 4.5 l130 x 150 mm150

230 x 410 x 420 mm8.5

13.307,00

3.935,33

incl. Tax Add to
basket

DD-BC6.DCode: 4.663 248

not in stock4.5 ... 6 l130 x 150 mm200

240 x 440 x 470 mm9.7

13.512,00

4.179,28

incl. Tax Add to
basket

DD-BC12.DCode: 4.663 249

not in stock8.5 ... 12 l220 x 150 mm200

330 x 490 x 470 mm11.9

13.782,00

4.500,58

incl. Tax Add to
basket

DD-BC26.DCode: 4.663 250

not in stock19 ... 26 l260 x 350 mm200

390 x 620 x 480 mm18.7

14.142,00

4.928,98

incl. Tax Add to
basket

Code: 4.663 247

not in stock

TypeDD-BC4.D

Volume bath3 ... 4.5 l

Opening (WxD)130 x 150 mm

Bath depth

Ext. dim. (WxDxH)230 x 410 x 420 mm

Weight

1 VE3.307,00

EUR3.935,33

EUR incl. Tax

please selectAdd to
basket

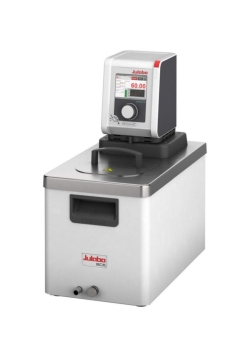

Code: 4.663 248

not in stock

TypeDD-BC6.D

Volume bath4.5 ... 6 l

Opening (WxD)130 x 150 mm

Bath depth

Ext. dim. (WxDxH)240 x 440 x 470 mm

Weight

1 VE3.512,00

EUR4.179,28

EUR incl. Tax

please selectAdd to
basket

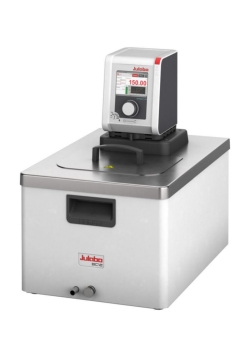

Code: 4.663 249

not in stock

TypeDD-BC12.D

Volume bath8.5 ... 12 l

Opening (WxD)220 x 150 mm

Bath depth

Ext. dim. (WxDxH)330 x 490 x 470 mm

Weight

1 VE3.782,00

EUR4.500,58

EUR incl. Tax

please selectAdd to
basket

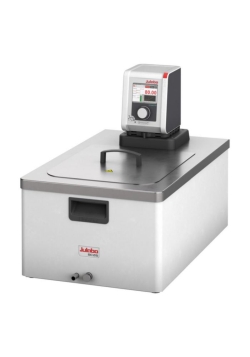

Code: 4.663 250

not in stock

TypeDD-BC26.D

Volume bath19 ... 26 l

Opening (WxD)260 x 350 mm

Bath depth

Ext. dim. (WxDxH)390 x 620 x 480 mm

Weight

1 VE4.142,00

EUR4.928,98

EUR incl. Tax

please selectAdd to
basket

Type DD-BC4.D

Volume bath 3 ... 4.5 l

Opening (WxD) 130 x 150 mm

Bath depth

Ext. dim. 230 x 410 x 420 mm(WxDxH)

Weight

Cat. No. 4.663 247

Type DD-BC6.D

Volume bath 4.5 ... 6 l

Opening (WxD) 130 x 150 mm

Bath depth

Ext. dim. 240 x 440 x 470 mm(WxDxH)

Weight

Cat. No. 4.663 248

Type DD-BC12.D

Volume bath 8.5 ... 12 l

Opening (WxD) 220 x 150 mm

Bath depth

Ext. dim. 330 x 490 x 470 mm(WxDxH)

Weight

Cat. No. 4.663 249

Type DD-BC26.D

Volume bath 19 ... 26 l

Opening (WxD) 260 x 350 mm

Bath depth

Ext. dim. 390 x 620 x 480 mm(WxDxH)

Weight

Cat. No. 4.663 250
