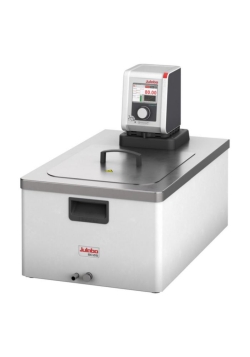

Heating circulator bath DYNEO™ DD-BC
For internal and external applications. With powerful components and a large, easy-to-read coloured TFT display. Operation is simple and intuitive via the central controller on the front of the device.
2 hose connectors for 8 and 12 mm I.W. and bath lid included.
- Easy switching between internal and external circulation
- Integrated cooling coil for counter-cooling
- Built-in drain tap
- Integrated programmer for 8 x 60 program steps
- Continuously adjustable, powerful pressure pump
- Pump connections M16 x 1 (outer thread)
- USB interface
- External Pt100 sensor connection
- High-quality bath tanks made of stainless steel
- Class III (FL) acc. to DIN 12876-1
2 hose connectors for 8 and 12 mm I.W. and bath lid included.
| Material bath: | Stainless steel |
| Temperature: | 20 ... 200 °C |
| Temperature stability: | ±0,01 °C |
| Max. flow rate: | 27 l/min |
| Max. delivery pressure: | 0.7 bar |
| Type of display: | TFT |
| Programmable: | Yes |
| With lid: | Yes |
| Heating capacity: | 2 kW |
| Power supply: | 200 ... 230 V, 50/60 Hz |
TypeVolume bathOpening (WxD)Bath depth
(WxDxH)Weight
mm
Ext. dim. (WxDxH)Weight
kg
PKPrice/UnitEUR
not in stock3 ... 4.5 l130 x 150 mm150mm
230 x 410 x 420 mm8.5kg
13.032,00€
3.608,08€
incl. Tax Add tobasket
not in stock4.5 ... 6 l130 x 150 mm200mm
240 x 440 x 470 mm9.7kg
13.237,00€
3.852,03€
incl. Tax Add tobasket
not in stock8.5 ... 12 l220 x 150 mm200mm
330 x 490 x 470 mm11.9kg
13.507,00€
4.173,33€
incl. Tax Add tobasket
not in stock19 ... 26 l260 x 350 mm200mm
390 x 620 x 480 mm18.7kg
13.867,00€
4.601,73€
incl. Tax Add tobasket
not in stockTypeDD-BC4
Volume bath3 ... 4.5 l
Opening (WxD)130 x 150 mm
Bath depth
mm
150mm
Ext. dim.
(WxDxH)230 x 410 x 420 mm
Weight
kg
8.5kg
PK1
1 VE3.032,00
€
EUR3.608,08€
EUR incl. Taxplease selectAdd to
basket
basket
not in stockTypeDD-BC6
Volume bath4.5 ... 6 l
Opening (WxD)130 x 150 mm
Bath depth
mm
200mm
Ext. dim.
(WxDxH)240 x 440 x 470 mm
Weight
kg
9.7kg
PK1
1 VE3.237,00
€
EUR3.852,03€
EUR incl. Taxplease selectAdd to
basket
basket
not in stockTypeDD-BC12
Volume bath8.5 ... 12 l
Opening (WxD)220 x 150 mm
Bath depth
mm
200mm
Ext. dim.
(WxDxH)330 x 490 x 470 mm
Weight
kg
11.9kg
PK1
1 VE3.507,00
€
EUR4.173,33€
EUR incl. Taxplease selectAdd to
basket
basket
not in stockTypeDD-BC26
Volume bath19 ... 26 l
Opening (WxD)260 x 350 mm
Bath depth
mm
200mm
Ext. dim.
(WxDxH)390 x 620 x 480 mm
Weight
kg
18.7kg
PK1
1 VE3.867,00
€
EUR4.601,73€
EUR incl. Taxplease selectAdd to
basket
basket
