Heating bath circulator, CORIO™ CD-B, with stainless steel bath tank

Heating bath circulator for internal and external temperature applications with stainless steel bath tank and pump connections.

-Bright, white, easy to read display
-Very quiet
-Pump change-over between internal and external circulation
-USB connection
-Integrated drain screw (except for B5)
-Class III (FL) according to DIN 12876-1

Material bath:	Stainless steel
Temperature:	20 ... 150 °C
Temperature stability:	±0,03 °C
Max. flow rate:	15 l/min
Max. delivery pressure:	0.35 bar
With lid:	No
Heating capacity:	2 kW
Power supply:	230 V, 50 Hz
IP code:	IP 21

Item added to basket.

Heating bath circulator, CORIO™ CD-B, with stainless steel bath tank

TypeVolume bathOpening (WxD)Bath depth

Ext. dim.
(WxDxH)Weight

PKPrice/Unit

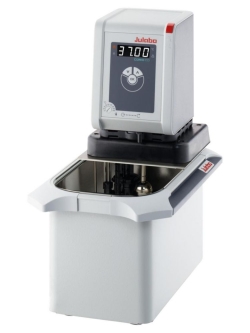

CD-B5Code: 4.657 997

not in stock3.5 ... 5 l150 x 150 mm150

230 x 380 x 410 mm8.2

11.620,00

1.927,80

incl. Tax Add to
basket

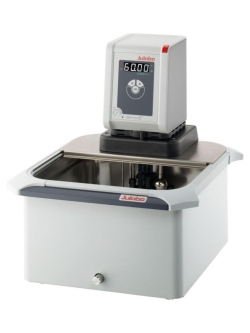

CD-B13Code: 4.657 998

not in stock9 ... 13 l300 x 180 mm150

380 x 400 x 420 mm9.1

11.867,00

2.221,73

incl. Tax Add to
basket

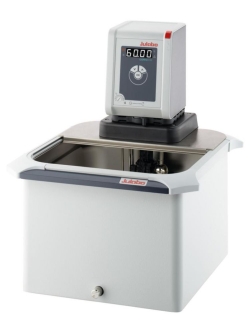

CD-B17Code: 4.657 999

not in stock13 ... 17 l300 x 180 mm200

380 x 400 x 470 mm9.3

11.954,00

2.325,26

incl. Tax Add to
basket

CD-B19Code: 4.658 000

not in stock14 ... 19 l300 x 350 mm150

380 x 580 x 420 mm11.5

11.949,00

2.319,31

incl. Tax Add to
basket

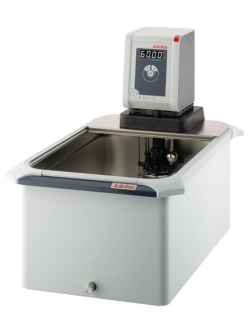

CD-B27Code: 4.658 001

not in stock17 ... 27 l300 x 350 mm200

380 x 580 x 470 mm13

12.118,00

2.520,42

incl. Tax Add to
basket

CD-B33Code: 4.658 002

not in stock26 ... 39 l660 x 320 mm150

910 x 360 x 430 mm21

13.272,00

3.893,68

incl. Tax Add to
basket

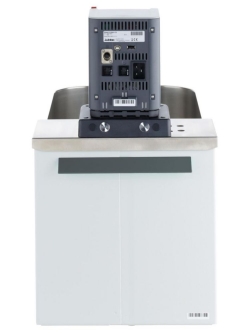

CD-B39Code: 4.658 003

not in stock35 ... 41 l330 x 300 mm300

540 x 340 x 570 mm18

13.372,00

4.012,68

incl. Tax Add to
basket

Code: 4.657 997

not in stock

TypeCD-B5

Volume bath3.5 ... 5 l

Opening (WxD)150 x 150 mm

Bath depth

Ext. dim. (WxDxH)230 x 380 x 410 mm

Weight

1 VE1.620,00

EUR1.927,80

EUR incl. Tax

please selectAdd to
basket

Code: 4.657 998

not in stock

TypeCD-B13

Volume bath9 ... 13 l

Opening (WxD)300 x 180 mm

Bath depth

Ext. dim. (WxDxH)380 x 400 x 420 mm

Weight

1 VE1.867,00

EUR2.221,73

EUR incl. Tax

please selectAdd to
basket

Code: 4.657 999

not in stock

TypeCD-B17

Volume bath13 ... 17 l

Opening (WxD)300 x 180 mm

Bath depth

Ext. dim. (WxDxH)380 x 400 x 470 mm

Weight

1 VE1.954,00

EUR2.325,26

EUR incl. Tax

please selectAdd to
basket

Code: 4.658 000

not in stock

TypeCD-B19

Volume bath14 ... 19 l

Opening (WxD)300 x 350 mm

Bath depth

Ext. dim. (WxDxH)380 x 580 x 420 mm

Weight

1 VE1.949,00

EUR2.319,31

EUR incl. Tax

please selectAdd to
basket

Code: 4.658 001

not in stock

TypeCD-B27

Volume bath17 ... 27 l

Opening (WxD)300 x 350 mm

Bath depth

Ext. dim. (WxDxH)380 x 580 x 470 mm

Weight

1 VE2.118,00

EUR2.520,42

EUR incl. Tax

please selectAdd to
basket

Code: 4.658 002

not in stock

TypeCD-B33

Volume bath26 ... 39 l

Opening (WxD)660 x 320 mm

Bath depth

Ext. dim. (WxDxH)910 x 360 x 430 mm

Weight

1 VE3.272,00

EUR3.893,68

EUR incl. Tax

please selectAdd to
basket

Code: 4.658 003

not in stock

TypeCD-B39

Volume bath35 ... 41 l

Opening (WxD)330 x 300 mm

Bath depth

Ext. dim. (WxDxH)540 x 340 x 570 mm

Weight

1 VE3.372,00

EUR4.012,68

EUR incl. Tax

please selectAdd to
basket

Type CD-B5

Volume bath 3.5 ... 5 l

Opening (WxD) 150 x 150 mm

Bath depth

Ext. dim. 230 x 380 x 410 mm(WxDxH)

Weight

Cat. No. 4.657 997

Type CD-B13

Volume bath 9 ... 13 l

Opening (WxD) 300 x 180 mm

Bath depth

Ext. dim. 380 x 400 x 420 mm(WxDxH)

Weight

Cat. No. 4.657 998

Type CD-B17

Volume bath 13 ... 17 l

Opening (WxD) 300 x 180 mm

Bath depth

Ext. dim. 380 x 400 x 470 mm(WxDxH)

Weight

Cat. No. 4.657 999

Type CD-B19

Volume bath 14 ... 19 l

Opening (WxD) 300 x 350 mm

Bath depth

Ext. dim. 380 x 580 x 420 mm(WxDxH)

Weight

Cat. No. 4.658 000

Type CD-B27

Volume bath 17 ... 27 l

Opening (WxD) 300 x 350 mm

Bath depth

Ext. dim. 380 x 580 x 470 mm(WxDxH)

Weight

Cat. No. 4.658 001

Type CD-B33

Volume bath 26 ... 39 l

Opening (WxD) 660 x 320 mm

Bath depth

Ext. dim. 910 x 360 x 430 mm(WxDxH)

Weight

Cat. No. 4.658 002

Type CD-B39

Volume bath 35 ... 41 l

Opening (WxD) 330 x 300 mm

Bath depth

Ext. dim. 540 x 340 x 570 mm(WxDxH)

Weight

Cat. No. 4.658 003

Accessories:

Flat bath covers for bath tanks, stainless steel

from 131,00 €

Test tube racks for water baths PURA™, shaking water baths SW and heating circulators CORIO™

from 61,00 €

Test tube racks for heating and refrigerated circulators MAGIO™/DYNEO™/CORIO™

from 101,00 €

Tubing insulations for refrigerated and heating circulators

from 22,00 €

Telescopic bridges for heating and refrigerated circulators

from 460,00 €

Variable platforms for heating bath circulators CORIO™ C and heating circulators CORIO™ CD

from 335,00 €

Lift-up gable bath covers for bath tanks, stainless steel

from 422,00 €

Temperature hoses, stainless steel 1.4404, single insulation

from 255,00 €

Bath cover with special cooling coil for bath tanks

432,00 €

Stainless steel bath tanks for immersion thermostats CORIO™ C/CD
