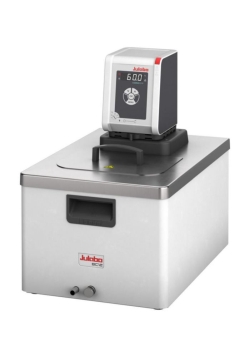

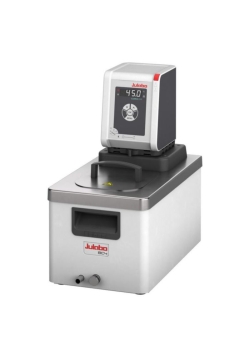

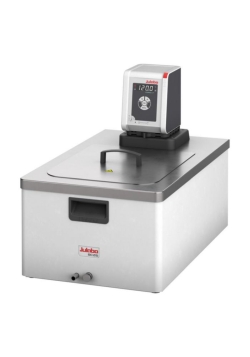

Circulator baths CORIO™ CP / Julabo
With insulated stainless steel bath tanks, flexible performance and an operating temperature range of up to 200 °C. Temperature control is possible either in the internal bath or in a connected external application.
-Suitable for internal and external applications
-High-quality stainless steel bath vessels with bath lid and drain
-Integrated pump connections M16 x 1
-Integrated cooling coil for counter-cooling
-Bright, white, easily visible display, even from a distance
-Low-level warning system
-Easy switching between internal and external circulation
-Powerful, continuously variable pump
-Pump capacity adjustable from 8 to 27 l/min
-Very quiet
-Rubber feet for secure standing
-USB connection
-RS232 interface
-3-point calibration
-Class III (FL) according to DIN 12876-1
Scope of supply: Circulator bath, mains power cable, connection box, bath, bath cover, hose connectors 8 and 12 mm
-Suitable for internal and external applications
-High-quality stainless steel bath vessels with bath lid and drain
-Integrated pump connections M16 x 1
-Integrated cooling coil for counter-cooling
-Bright, white, easily visible display, even from a distance
-Low-level warning system
-Easy switching between internal and external circulation
-Powerful, continuously variable pump
-Pump capacity adjustable from 8 to 27 l/min
-Very quiet
-Rubber feet for secure standing
-USB connection
-RS232 interface
-3-point calibration
-Class III (FL) according to DIN 12876-1
Scope of supply: Circulator bath, mains power cable, connection box, bath, bath cover, hose connectors 8 and 12 mm
| Material bath: | Stainless steel |
| Temperature: | 20 ... 200 °C |
| Temperature stability: | ±0,02 °C |
| Max. flow rate: | 27 l/min |
| Max. delivery pressure: | 0.7 bar |
| With lid: | Yes |
| Heating capacity: | 2 kW |
| Power supply: | 200 ... 230 V, 50/60 Hz |
TypeVolume bathOpening (WxD)Bath depth
(WxDxH)Weight
mm
Ext. dim. (WxDxH)Weight
kg
PKPrice/UnitEUR

mm
230 x 410 x 420 mm8.5kg
12.864,00€
3.408,16€
incl. Tax Add tobasket

mm
240 x 440 x 470 mm10kg
13.075,00€
3.659,25€
incl. Tax Add tobasket

mm
330 x 490 x 470 mm12kg
13.344,00€
3.979,36€
incl. Tax Add tobasket

mm
390 x 620 x 480 mm19kg
13.719,00€
4.425,61€
incl. Tax Add tobasket

TypeCP-BC4
Volume bath3 ... 4.5 l
Opening (WxD)130 x 150 mm
Bath depth
mm
150mm
Ext. dim.
(WxDxH)230 x 410 x 420 mm
Weight
kg
8.5kg
PK1
1 VE2.864,00
€
EUR3.408,16€
EUR incl. Taxplease selectAdd to
basket
basket

TypeCP-BC6
Volume bath4.5 ... 6 l
Opening (WxD)130 x 150 mm
Bath depth
mm
200mm
Ext. dim.
(WxDxH)240 x 440 x 470 mm
Weight
kg
10kg
PK1
1 VE3.075,00
€
EUR3.659,25€
EUR incl. Taxplease selectAdd to
basket
basket

TypeCP-BC12
Volume bath8.5 ... 12 l
Opening (WxD)220 x 150 mm
Bath depth
mm
200mm
Ext. dim.
(WxDxH)330 x 490 x 470 mm
Weight
kg
12kg
PK1
1 VE3.344,00
€
EUR3.979,36€
EUR incl. Taxplease selectAdd to
basket
basket

TypeCP-BC26
Volume bath19 ... 26 l
Opening (WxD)260 x 350 mm
Bath depth
mm
200mm
Ext. dim.
(WxDxH)390 x 620 x 480 mm
Weight
kg
19kg
PK1
1 VE3.719,00
€
EUR4.425,61€
EUR incl. Taxplease selectAdd to
basket
basket
