Circulator Baths, CORIO™ CD
CORIO™ CD Heating Circulators for internal and external temperature applications with stainless steel baths for working temperatures from 20 °C to 150 °C. CORIO™ Heating Circulators feature professional technology for demanding applications. These units facilitate internal temperature control in the bath tank or control of externally connected applications.
- For internal and external applications
- Bright, white, easy to read display
- Very quiet
- Pump change-over between internal and external circulation
- USB connection
- High-quality bath tanks made of stainless steel with bath lid and drain tap
- Integrated cooling coil for counter-cooling
| Material bath: | Stainless steel |
| Temperature: | 20 ... 150 °C |
| Temperature stability: | ±0,03 °C |
| Max. flow rate: | 15 l/min |
| Max. delivery pressure: | 0.35 bar |
| With lid: | Yes |
| Heating capacity: | 2 kW |
| Power supply: | 230 V, 50 Hz |
| IP code: | IP 21 |
Topseller
Safety pipette bulb, rubber, red
from 9,65 €
Magnetic stirrer IKA Plate (RCT digital)
from 1.172,00 €
TypeVolume bathOpening (WxD)Bath depth
(WxDxH)Weight
mm
Ext. dim. (WxDxH)Weight
kg
PKPrice/UnitEUR
CD-BC4Code: 4.658 004
not in stock3 ... 4.5 l130 x 150 mm150
basket
not in stock3 ... 4.5 l130 x 150 mm150mm
230 x 410 x 420 mm8.8kg
11.989,00€
2.366,91€
incl. Tax Add tobasket
CD-BC6Code: 4.658 005 not in stock4.5 ... 6 l130 x 150 mm200
basket
not in stock4.5 ... 6 l130 x 150 mm200mm
240 x 440 x 470 mm10kg
12.194,00€
2.610,86€
incl. Tax Add tobasket
CD-BC12Code: 4.658 006 not in stock8.5 ... 12 l220 x 150 mm200
basket
not in stock8.5 ... 12 l220 x 150 mm200mm
330 x 490 x 470 mm12.2kg
12.464,00€
2.932,16€
incl. Tax Add tobasket
not in stock19 ... 26 l260 x 350 mm200mm
390 x 620 x 480 mm19kg
12.824,00€
3.360,56€
incl. Tax Add tobasket
Code: 4.658 004 not in stock

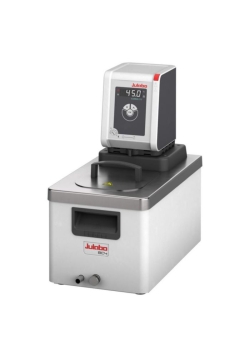

not in stockTypeCD-BC4
Volume bath3 ... 4.5 l
Opening (WxD)130 x 150 mm
Bath depth
mm
150mm
Ext. dim.
(WxDxH)230 x 410 x 420 mm
Weight
kg
8.8kg
PK1
1 VE1.989,00
€
EUR2.366,91€
EUR incl. Taxplease selectAdd to
basket
basket
Code: 4.658 005 not in stock

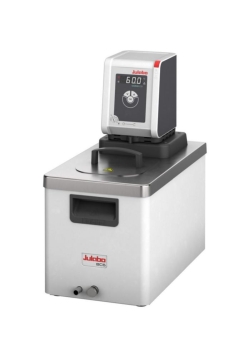

not in stockTypeCD-BC6
Volume bath4.5 ... 6 l
Opening (WxD)130 x 150 mm
Bath depth
mm
200mm
Ext. dim.
(WxDxH)240 x 440 x 470 mm
Weight
kg
10kg
PK1
1 VE2.194,00
€
EUR2.610,86€
EUR incl. Taxplease selectAdd to
basket
basket
Code: 4.658 006 not in stock

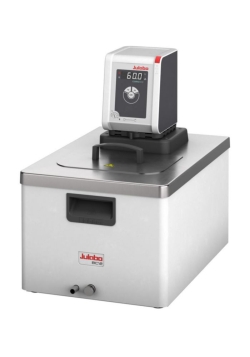

not in stockTypeCD-BC12
Volume bath8.5 ... 12 l
Opening (WxD)220 x 150 mm
Bath depth
mm
200mm
Ext. dim.
(WxDxH)330 x 490 x 470 mm
Weight
kg
12.2kg
PK1
1 VE2.464,00
€
EUR2.932,16€
EUR incl. Taxplease selectAdd to
basket
basket

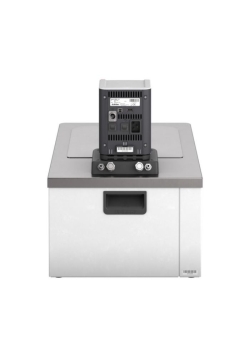

not in stockTypeCD-BC26
Volume bath19 ... 26 l
Opening (WxD)260 x 350 mm
Bath depth
mm
200mm
Ext. dim.
(WxDxH)390 x 620 x 480 mm
Weight
kg
19kg
PK1
1 VE2.824,00
€
EUR3.360,56€
EUR incl. Taxplease selectAdd to
basket
basket
