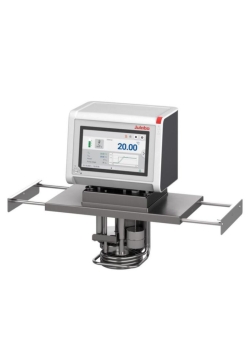

Bridge circulators MAGIO MS and MX / Julabo
Thanks to the adjustable stainless steel bridge the thermostats can be used with bath tanks up to a filling volume of 100 litres and bath widths from 33 to 68 cm.
-Simple control of complex applications
-Infinitely adjustable, extremely powerful pressure and suction pump
-Large, high-resolution TFT touch display with multilingual user interface
-Medium-contacting parts made of stainless steel
-Integrated programmer
-External Pt100 connection
-USB interface
-RS232 interface
-Ethernet interface
-Analogue interfaces (optionally)
-Classification III according to DIN 12876-1
-Simple control of complex applications
-Infinitely adjustable, extremely powerful pressure and suction pump
-Large, high-resolution TFT touch display with multilingual user interface
-Medium-contacting parts made of stainless steel
-Integrated programmer
-External Pt100 connection
-USB interface
-RS232 interface
-Ethernet interface
-Analogue interfaces (optionally)
-Classification III according to DIN 12876-1
| Temperature stability: | ±0,01 °C |
| Max. flow rate: | 31 l/min |
| Max. delivery pressure: | 0.92 bar |
| Max. suction pressure: | 0.4 bar |
| Type of display: | TFT |
| Operation: | Touchscreen |
| Power supply: | 230 V, 50/60 Hz |
| IP code: | IP 20 |
TypeTemperatureImmersion depthDimensions (WxDxH)Weight
kg
Heating capacitykW
PKPrice/UnitEUR

kg
2kW
14.249,00€
5.056,31€
incl. Tax Add tobasket

kg
3kW
14.392,00€
5.226,48€
incl. Tax Add tobasket

TypeMS-Z
Temperature20 ... 300 °C
Immersion depth150 mm
Dimensions (WxDxH)340 x 190 x 360 mm
Weight
kg
7.2kg
Heating capacity
kW
2kW
PK1
1 VE4.249,00
€
EUR5.056,31€
EUR incl. Taxplease selectAdd to
basket
basket

TypeMX-Z
Temperature20 ... 300 °C
Immersion depth200 mm
Dimensions (WxDxH)340 x 190 x 410 mm
Weight
kg
7.6kg
Heating capacity
kW
3kW
PK1
1 VE4.392,00
€
EUR5.226,48€
EUR incl. Taxplease selectAdd to
basket
basket
