Refrigerated circulators DYNEO™ DD, with RS232 interface

Refrigerated circulators are suitable for temperature control for internal and external applications. Operation is simple and intuitive via the central rotary knob on the front of the unit.

3.5" TFT colour display with multilingual user interface
Integrated programmer for 8 x 60 program steps
Easy pump switching between internal and external circulation
External pump connections (M16x1)
Infinitely adjustable pressure pump
USB connection
Space-saving cooling coil design yields more usable space in the bath tank
External Pt100 connection
Stainless steel bath tank including bath lid and drain tap
Removable ventilation grid
2 hose olives each suitable for hose inner diameter 8 and 12 mm included
Class III (FL) acc. to DIN 12876-1

-RS232 interface

Material bath:	Stainless steel
Temperature stability:	±0,01 °C
Max. flow rate:	27 l/min
Max. delivery pressure:	0.7 bar
Type of display:	TFT
With lid:	Yes
Heating capacity:	2 kW
IP code:	IP 21

Item added to basket.

Refrigerated circulators DYNEO™ DD, with RS232 interface

TypeVolume bathTemperatureRefrigerantCooling
capacity at 20 °C

Opening (WxD)Bath depth

Ext. dim.
(WxDxH)Weight

PKPrice/Unit

DD-200F.DCode: 4.663 251

not in stock3 ... 4 l-20 ... 200 °CR134a0,2

130 x 150 mm150

230 x 390 x 650 mm25.7

15.269,00

6.270,11

incl. Tax Add to
basket

DD-200F.DCode: 4.693 945

not in stock3 ... 4 l-20 ... 200 °CR2900,2

130 x 150 mm150

230 x 390 x 650 mm25.7

15.149,00

6.127,31

incl. Tax Add to
basket

DD-201F.DCode: 4.663 252

not in stock3 ... 4 l-20 ... 200 °CR134a0,2

130 x 150 mm150

440 x 410 x 440 mm24.7

15.269,00

6.270,11

incl. Tax Add to
basket

DD-300F.DCode: 4.663 253

not in stock3 ... 4 l-25 ... 200 °CR134a0,3

130 x 150 mm150

240 x 420 x 660 mm27.7

15.869,00

6.984,11

incl. Tax Add to
basket

DD-310F.DCode: 4.685 636

not in stock3 ... 4 l-30 ... 200 °CR2900,3

130 x 150 mm150

230 x 400 x 650 mm25.4

15.764,00

6.859,16

incl. Tax Add to
basket

DD-310F.DCode: 4.685 639

not in stock3 ... 4 l-30 ... 200 °CR449A0,3

130 x 150 mm150

230 x 400 x 650 mm25.4

15.764,00

6.859,16

incl. Tax Add to
basket

DD-449F.DCode: 4.687 386

not in stock20 ... 26 l-32 ... 200 °CR2900,44

280 x 350 mm200

370 x 590 x 690 mm39.5

17.229,00

8.602,51

incl. Tax Add to
basket

DD-450F.DCode: 4.685 642

not in stock3 ... 4 l-30 ... 200 °CR2900,44

130 x 150 mm150

230 x 400 x 650 mm27.4

16.249,00

7.436,31

incl. Tax Add to
basket

DD-450F.DCode: 4.685 645

not in stock3 ... 4 l-30 ... 200 °CR449A0,44

130 x 150 mm150

230 x 400 x 650 mm27.4

16.249,00

7.436,31

incl. Tax Add to
basket

DD-601F.DCode: 4.663 255

not in stock8 ... 10 l-35 ... 200 °CR449A0,6

220 x 150 mm200

330 x 470 x 740 mm38.2

17.269,00

8.650,11

incl. Tax Add to
basket

DD-800F.DCode: 4.692 240

not in stock5 ... 7.5 l-40 ... 200 °CR12700,84

180 x 130 mm150

330 x 470 x 700 mm42

17.819,00

9.304,61

incl. Tax Add to
basket

DD-1000F.DCode: 4.663 257

not in stock5 ... 7.5 l-50 ... 200 °CR449A1

180 x 130 mm150

420 x 490 x 740 mm51.2

18.974,00

10.679,06

incl. Tax Add to
basket

DD-1200F.DCode: 4.692 243

not in stock5 ... 7.5 l-50 ... 200 °CR12701,24

180 x 130 mm150

330 x 470 x 700 mm44

19.074,00

10.798,06

incl. Tax Add to
basket

DD-1201F.DCode: 4.716 005

not in stock48 ... 56 l-40 ... 100 °CR12701,25

350 x 400 mm300

450 x 640 x 950 mm68

110.819,00

12.874,61

incl. Tax Add to
basket

DD-1200FW.DCode: 4.693 948

not in stock5 ... 7.5 l-50 ... 200 °CR12701,24

180 x 130 mm150

330 x 470 x 700 mm44

110.969,00

13.053,11

incl. Tax Add to
basket

Code: 4.663 251

not in stock

TypeDD-200F.D

Volume bath3 ... 4 l

Temperature-20 ... 200 °C

RefrigerantR134a

Cooling capacity at 20 °C

Opening (WxD)130 x 150 mm

Bath depth

Ext. dim. (WxDxH)230 x 390 x 650 mm

Weight

1 VE5.269,00

EUR6.270,11

EUR incl. Tax

please selectAdd to
basket

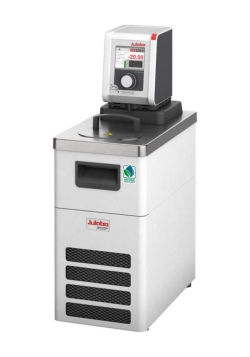

Code: 4.693 945

not in stock

TypeDD-200F.D

Volume bath3 ... 4 l

Temperature-20 ... 200 °C

RefrigerantR290

Cooling capacity at 20 °C

Opening (WxD)130 x 150 mm

Bath depth

Ext. dim. (WxDxH)230 x 390 x 650 mm

Weight

1 VE5.149,00

EUR6.127,31

EUR incl. Tax

please selectAdd to
basket

Code: 4.663 252

not in stock

TypeDD-201F.D

Volume bath3 ... 4 l

Temperature-20 ... 200 °C

RefrigerantR134a

Cooling capacity at 20 °C

Opening (WxD)130 x 150 mm

Bath depth

Ext. dim. (WxDxH)440 x 410 x 440 mm

Weight

1 VE5.269,00

EUR6.270,11

EUR incl. Tax

please selectAdd to
basket

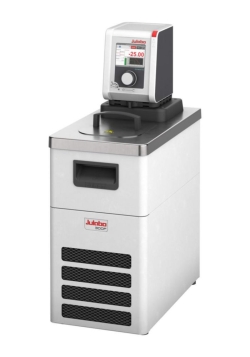

Code: 4.663 253

not in stock

TypeDD-300F.D

Volume bath3 ... 4 l

Temperature-25 ... 200 °C

RefrigerantR134a

Cooling capacity at 20 °C

Opening (WxD)130 x 150 mm

Bath depth

Ext. dim. (WxDxH)240 x 420 x 660 mm

Weight

1 VE5.869,00

EUR6.984,11

EUR incl. Tax

please selectAdd to
basket

Code: 4.685 636

not in stock

TypeDD-310F.D

Volume bath3 ... 4 l

Temperature-30 ... 200 °C

RefrigerantR290

Cooling capacity at 20 °C

Opening (WxD)130 x 150 mm

Bath depth

Ext. dim. (WxDxH)230 x 400 x 650 mm

Weight

1 VE5.764,00

EUR6.859,16

EUR incl. Tax

please selectAdd to
basket

Code: 4.685 639

not in stock

TypeDD-310F.D

Volume bath3 ... 4 l

Temperature-30 ... 200 °C

RefrigerantR449A

Cooling capacity at 20 °C

Opening (WxD)130 x 150 mm

Bath depth

Ext. dim. (WxDxH)230 x 400 x 650 mm

Weight

1 VE5.764,00

EUR6.859,16

EUR incl. Tax

please selectAdd to
basket

Code: 4.687 386

not in stock

TypeDD-449F.D

Volume bath20 ... 26 l

Temperature-32 ... 200 °C

RefrigerantR290

Cooling capacity at 20 °C

Opening (WxD)280 x 350 mm

Bath depth

Ext. dim. (WxDxH)370 x 590 x 690 mm

Weight

1 VE7.229,00

EUR8.602,51

EUR incl. Tax

please selectAdd to
basket

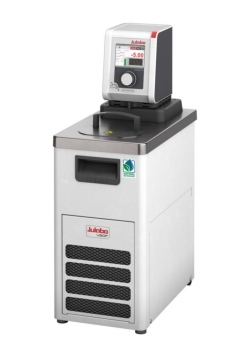

Code: 4.685 642

not in stock

TypeDD-450F.D

Volume bath3 ... 4 l

Temperature-30 ... 200 °C

RefrigerantR290

Cooling capacity at 20 °C

Opening (WxD)130 x 150 mm

Bath depth

Ext. dim. (WxDxH)230 x 400 x 650 mm

Weight

1 VE6.249,00

EUR7.436,31

EUR incl. Tax

please selectAdd to
basket

Code: 4.685 645

not in stock

TypeDD-450F.D

Volume bath3 ... 4 l

Temperature-30 ... 200 °C

RefrigerantR449A

Cooling capacity at 20 °C

Opening (WxD)130 x 150 mm

Bath depth

Ext. dim. (WxDxH)230 x 400 x 650 mm

Weight

1 VE6.249,00

EUR7.436,31

EUR incl. Tax

please selectAdd to
basket

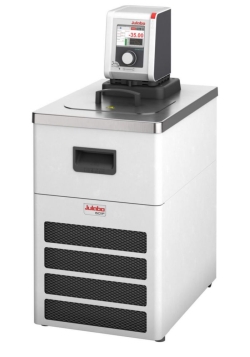

Code: 4.663 255

not in stock

TypeDD-601F.D

Volume bath8 ... 10 l

Temperature-35 ... 200 °C

RefrigerantR449A

Cooling capacity at 20 °C

Opening (WxD)220 x 150 mm

Bath depth

Ext. dim. (WxDxH)330 x 470 x 740 mm

Weight

1 VE7.269,00

EUR8.650,11

EUR incl. Tax

please selectAdd to
basket

Code: 4.692 240

not in stock

TypeDD-800F.D

Volume bath5 ... 7.5 l

Temperature-40 ... 200 °C

RefrigerantR1270

Cooling capacity at 20 °C

Opening (WxD)180 x 130 mm

Bath depth

Ext. dim. (WxDxH)330 x 470 x 700 mm

Weight

1 VE7.819,00

EUR9.304,61

EUR incl. Tax

please selectAdd to
basket

Code: 4.663 257

not in stock

TypeDD-1000F.D

Volume bath5 ... 7.5 l

Temperature-50 ... 200 °C

RefrigerantR449A

Cooling capacity at 20 °C

Opening (WxD)180 x 130 mm

Bath depth

Ext. dim. (WxDxH)420 x 490 x 740 mm

Weight

1 VE8.974,00

EUR10.679,06

EUR incl. Tax

please selectAdd to
basket

Code: 4.692 243

not in stock

TypeDD-1200F.D

Volume bath5 ... 7.5 l

Temperature-50 ... 200 °C

RefrigerantR1270

Cooling capacity at 20 °C

Opening (WxD)180 x 130 mm

Bath depth

Ext. dim. (WxDxH)330 x 470 x 700 mm

Weight

1 VE9.074,00

EUR10.798,06

EUR incl. Tax

please selectAdd to
basket

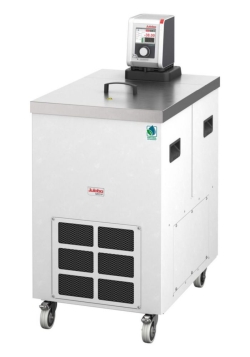

Code: 4.716 005

not in stock

TypeDD-1201F.D

Volume bath48 ... 56 l

Temperature-40 ... 100 °C

RefrigerantR1270

Cooling capacity at 20 °C

Opening (WxD)350 x 400 mm

Bath depth

Ext. dim. (WxDxH)450 x 640 x 950 mm

Weight

1 VE10.819,00

EUR12.874,61

EUR incl. Tax

please selectAdd to
basket

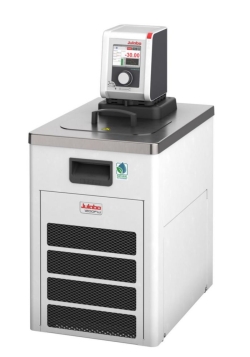

Code: 4.693 948

not in stock

TypeDD-1200FW.D

Volume bath5 ... 7.5 l

Temperature-50 ... 200 °C

RefrigerantR1270

Cooling capacity at 20 °C

Opening (WxD)180 x 130 mm

Bath depth

Ext. dim. (WxDxH)330 x 470 x 700 mm

Weight

1 VE10.969,00

EUR13.053,11

EUR incl. Tax

please selectAdd to
basket

Type DD-200F.D

Volume bath 3 ... 4 l

Temperature -20 ... 200 °C

Refrigerant R134a

Cooling 0,2capacity at 20 °C

Opening (WxD) 130 x 150 mm

Bath depth

Ext. dim. 230 x 390 x 650 mm(WxDxH)

Weight

Cat. No. 4.663 251

Type DD-200F.D

Volume bath 3 ... 4 l

Temperature -20 ... 200 °C

Refrigerant R290

Cooling 0,2capacity at 20 °C

Opening (WxD) 130 x 150 mm

Bath depth

Ext. dim. 230 x 390 x 650 mm(WxDxH)

Weight

Cat. No. 4.693 945

Type DD-201F.D

Volume bath 3 ... 4 l

Temperature -20 ... 200 °C

Refrigerant R134a

Cooling 0,2capacity at 20 °C

Opening (WxD) 130 x 150 mm

Bath depth

Ext. dim. 440 x 410 x 440 mm(WxDxH)

Weight

Cat. No. 4.663 252

Type DD-300F.D

Volume bath 3 ... 4 l

Temperature -25 ... 200 °C

Refrigerant R134a

Cooling 0,3capacity at 20 °C

Opening (WxD) 130 x 150 mm

Bath depth

Ext. dim. 240 x 420 x 660 mm(WxDxH)

Weight

Cat. No. 4.663 253

Type DD-310F.D

Volume bath 3 ... 4 l

Temperature -30 ... 200 °C

Refrigerant R290

Cooling 0,3capacity at 20 °C

Opening (WxD) 130 x 150 mm

Bath depth

Ext. dim. 230 x 400 x 650 mm(WxDxH)

Weight

Cat. No. 4.685 636

Type DD-310F.D

Volume bath 3 ... 4 l

Temperature -30 ... 200 °C

Refrigerant R449A

Cooling 0,3capacity at 20 °C

Opening (WxD) 130 x 150 mm

Bath depth

Ext. dim. 230 x 400 x 650 mm(WxDxH)

Weight

Cat. No. 4.685 639

Type DD-449F.D

Volume bath 20 ... 26 l

Temperature -32 ... 200 °C

Refrigerant R290

Cooling 0,44capacity at 20 °C

Opening (WxD) 280 x 350 mm

Bath depth

Ext. dim. 370 x 590 x 690 mm(WxDxH)

Weight

Cat. No. 4.687 386

Type DD-450F.D

Volume bath 3 ... 4 l

Temperature -30 ... 200 °C

Refrigerant R290

Cooling 0,44capacity at 20 °C

Opening (WxD) 130 x 150 mm

Bath depth

Ext. dim. 230 x 400 x 650 mm(WxDxH)

Weight

Cat. No. 4.685 642

Type DD-450F.D

Volume bath 3 ... 4 l

Temperature -30 ... 200 °C

Refrigerant R449A

Cooling 0,44capacity at 20 °C

Opening (WxD) 130 x 150 mm

Bath depth

Ext. dim. 230 x 400 x 650 mm(WxDxH)

Weight

Cat. No. 4.685 645

Type DD-601F.D

Volume bath 8 ... 10 l

Temperature -35 ... 200 °C

Refrigerant R449A

Cooling 0,6capacity at 20 °C

Opening (WxD) 220 x 150 mm

Bath depth

Ext. dim. 330 x 470 x 740 mm(WxDxH)

Weight

Cat. No. 4.663 255

Type DD-800F.D

Volume bath 5 ... 7.5 l

Temperature -40 ... 200 °C

Refrigerant R1270

Cooling 0,84capacity at 20 °C

Opening (WxD) 180 x 130 mm

Bath depth

Ext. dim. 330 x 470 x 700 mm(WxDxH)

Weight

Cat. No. 4.692 240

Type DD-1000F.D

Volume bath 5 ... 7.5 l

Temperature -50 ... 200 °C

Refrigerant R449A

Cooling 1capacity at 20 °C

Opening (WxD) 180 x 130 mm

Bath depth

Ext. dim. 420 x 490 x 740 mm(WxDxH)

Weight

Cat. No. 4.663 257

Type DD-1200F.D

Volume bath 5 ... 7.5 l

Temperature -50 ... 200 °C

Refrigerant R1270

Cooling 1,24capacity at 20 °C

Opening (WxD) 180 x 130 mm

Bath depth

Ext. dim. 330 x 470 x 700 mm(WxDxH)

Weight

Cat. No. 4.692 243

Type DD-1201F.D

Volume bath 48 ... 56 l

Temperature -40 ... 100 °C

Refrigerant R1270

Cooling 1,25capacity at 20 °C

Opening (WxD) 350 x 400 mm

Bath depth

Ext. dim. 450 x 640 x 950 mm(WxDxH)

Weight

Cat. No. 4.716 005

Type DD-1200FW.D

Volume bath 5 ... 7.5 l

Temperature -50 ... 200 °C

Refrigerant R1270

Cooling 1,24capacity at 20 °C

Opening (WxD) 180 x 130 mm

Bath depth

Ext. dim. 330 x 470 x 700 mm(WxDxH)

Weight

Cat. No. 4.693 948

Accessories:

Hose olives for Refrigerated circulators

from 25,00 €

Tubing insulations for refrigerated and heating circulators

from 21,00 €

Test tube racks for heating and refrigerated circulators MAGIO™/DYNEO™/CORIO™

from 99,00 €

Lockable bath cover for heating and refrigerated circulators MAGIO™ / DYNEO™ / CORIO™

998,00 €

Telescopic bridges for heating and refrigerated circulators

from 450,00 €

Variable platform for heating and refrigerated circulators MAGIO™ / DYNEO™ / CORIO™

365,00 €

Temperature hoses, stainless steel 1.4404, single insulation

from 248,00 €

Temperature hoses, stainless steel 1.4404, triple insulation

from 317,00 €

ProfiNet Interface

1.425,00 €

Water bath preservative liquid Aqua Stabil

Alternate products:

Refrigerated circulators DYNEO™ DD

from 4.665,65 €

Refrigerated circulators DYNEO™ DD, with analogue interface

from 5.313,00 €

Refrigerated circulators DYNEO™ DD, with RS232 interfaceJulaboAlternate products:

Refrigerated circulators DYNEO™ DD, with RS232 interface

Accessories:

Alternate products:

Address
