Refrigerated circulators CORIO™ CD / Julabo

Refrigerated circulators are suitable for internal and external standard temperature applications as well as routine work in laboratories and industry.

Bright, white, easy-to-read display
Easy pump switching between internal and external circulation
External pump connections (M16x1)
USB connection
Space-saving cooling coil design yields more usable space in the bath tank
Stainless steel bath tank including bath lid and drain tap
Removable ventilation grid
Refrigeration unit without lateral ventilation openings
2 hose olives each suitable for hose inner diameter 8 and 12 mm included
Class III (FL) acc. to DIN 12876-1

Material bath:	Stainless steel
Temperature stability:	±0,03 °C
Max. flow rate:	15 l/min
Max. delivery pressure:	0.35 bar
With lid:	Yes
Heating capacity:	2 kW
IP code:	IP 21

Item added to basket.

Refrigerated circulators CORIO™ CD

TypeVolume bathTemperatureRefrigerantCooling
capacity at 20 °C

Opening (WxD)Bath depth

Ext. dim.
(WxDxH)Weight

PKPrice/Unit

CD-200FCode: 4.658 008

not in stock3 ... 4 l-20 ... 150 °CR134a0,22

130 x 150 mm150

230 x 390 x 650 mm26

14.082,00

4.857,58

incl. Tax Add to
basket

CD-200FCode: 4.693 939

not in stock3 ... 4 l-20 ... 150 °CR2900,22

130 x 150 mm150

230 x 390 x 650 mm26

13.931,00

4.677,89

incl. Tax Add to
basket

CD-201FCode: 4.658 009

not in stock3 ... 4 l-20 ... 150 °CR134a0,22

130 x 150 mm150

440 x 410 x 440 mm25

14.057,00

4.827,83

incl. Tax Add to
basket

CD-300FCode: 4.658 010

not in stock3 ... 4 l-25 ... 150 °CR134a0,31

130 x 150 mm150

240 x 420 x 660 mm28

14.692,00

5.583,48

incl. Tax Add to
basket

CD-310FCode: 4.685 626

not in stock3 ... 4 l-30 ... 150 °CR2900,31

130 x 150 mm150

230 x 400 x 650 mm25.2

14.564,00

5.431,16

incl. Tax Add to
basket

CD-310FCode: 4.685 627

not in stock3 ... 4 l-30 ... 150 °CR449A0,31

130 x 150 mm150

230 x 400 x 650 mm25.2

14.564,00

5.431,16

incl. Tax Add to
basket

CD-449FCode: 4.687 382

not in stock20 ... 26 l-32 ... 150 °CR2900,45

280 x 350 mm200

370 x 590 x 690 mm39.5

16.062,00

7.213,78

incl. Tax Add to
basket

CD-450FCode: 4.685 628

not in stock3 ... 4 l-30 ... 150 °CR2900,45

130 x 150 mm150

230 x 400 x 650 mm25.1

15.052,00

6.011,88

incl. Tax Add to
basket

CD-450FCode: 4.685 629

not in stock3 ... 4 l-30 ... 150 °CR449A0,45

130 x 150 mm150

230 x 400 x 650 mm25.1

15.052,00

6.011,88

incl. Tax Add to
basket

CD-600FCode: 4.658 011

not in stock5 ... 7.5 l-35 ... 150 °CR449A0,6

220 x 150 mm150

330 x 470 x 690 mm36

15.732,00

6.821,08

incl. Tax Add to
basket

CD-601FCode: 6.283 539

not in stock8 ... 10 l-35 ... 150 °CR449A0,6

220 x 150 mm200

330 x 470 x 740 mm38.5

16.152,00

7.320,88

incl. Tax Add to
basket

CD-800FCode: 4.692 234

not in stock5 ... 7.5 l-40 ... 150 °CR12700,85

180 x 130 mm150

330 x 470 x 700 mm42

16.657,00

7.921,83

incl. Tax Add to
basket

CD-1200FCode: 4.692 235

not in stock5 ... 7.5 l-40 ... 150 °CR12701,25

180 x 130 mm150

330 x 470 x 700 mm42

17.962,00

9.474,78

incl. Tax Add to
basket

CD-1201FCode: 4.716 006

not in stock48 ... 56 l-40 ... 100 °CR12701,25

350 x 400 mm300

450 x 640 x 950 mm68

19.762,00

11.616,78

incl. Tax Add to
basket

Code: 4.658 008

not in stock

TypeCD-200F

Volume bath3 ... 4 l

Temperature-20 ... 150 °C

RefrigerantR134a

Cooling capacity at 20 °C

Opening (WxD)130 x 150 mm

Bath depth

Ext. dim. (WxDxH)230 x 390 x 650 mm

Weight

1 VE4.082,00

EUR4.857,58

EUR incl. Tax

please selectAdd to
basket

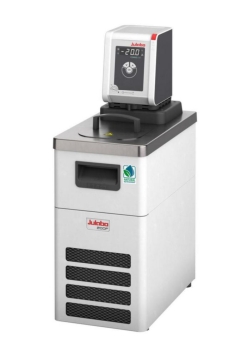

Code: 4.693 939

not in stock

TypeCD-200F

Volume bath3 ... 4 l

Temperature-20 ... 150 °C

RefrigerantR290

Cooling capacity at 20 °C

Opening (WxD)130 x 150 mm

Bath depth

Ext. dim. (WxDxH)230 x 390 x 650 mm

Weight

1 VE3.931,00

EUR4.677,89

EUR incl. Tax

please selectAdd to
basket

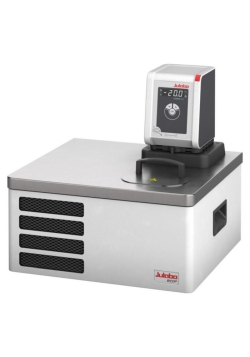

Code: 4.658 009

not in stock

TypeCD-201F

Volume bath3 ... 4 l

Temperature-20 ... 150 °C

RefrigerantR134a

Cooling capacity at 20 °C

Opening (WxD)130 x 150 mm

Bath depth

Ext. dim. (WxDxH)440 x 410 x 440 mm

Weight

1 VE4.057,00

EUR4.827,83

EUR incl. Tax

please selectAdd to
basket

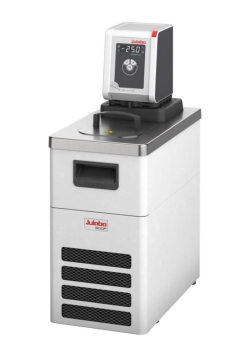

Code: 4.658 010

not in stock

TypeCD-300F

Volume bath3 ... 4 l

Temperature-25 ... 150 °C

RefrigerantR134a

Cooling capacity at 20 °C

Opening (WxD)130 x 150 mm

Bath depth

Ext. dim. (WxDxH)240 x 420 x 660 mm

Weight

1 VE4.692,00

EUR5.583,48

EUR incl. Tax

please selectAdd to
basket

Code: 4.685 626

not in stock

TypeCD-310F

Volume bath3 ... 4 l

Temperature-30 ... 150 °C

RefrigerantR290

Cooling capacity at 20 °C

Opening (WxD)130 x 150 mm

Bath depth

Ext. dim. (WxDxH)230 x 400 x 650 mm

Weight

1 VE4.564,00

EUR5.431,16

EUR incl. Tax

please selectAdd to
basket

Code: 4.685 627

not in stock

TypeCD-310F

Volume bath3 ... 4 l

Temperature-30 ... 150 °C

RefrigerantR449A

Cooling capacity at 20 °C

Opening (WxD)130 x 150 mm

Bath depth

Ext. dim. (WxDxH)230 x 400 x 650 mm

Weight

1 VE4.564,00

EUR5.431,16

EUR incl. Tax

please selectAdd to
basket

Code: 4.687 382

not in stock

TypeCD-449F

Volume bath20 ... 26 l

Temperature-32 ... 150 °C

RefrigerantR290

Cooling capacity at 20 °C

Opening (WxD)280 x 350 mm

Bath depth

Ext. dim. (WxDxH)370 x 590 x 690 mm

Weight

1 VE6.062,00

EUR7.213,78

EUR incl. Tax

please selectAdd to
basket

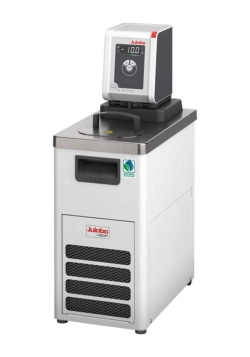

Code: 4.685 628

not in stock

TypeCD-450F

Volume bath3 ... 4 l

Temperature-30 ... 150 °C

RefrigerantR290

Cooling capacity at 20 °C

Opening (WxD)130 x 150 mm

Bath depth

Ext. dim. (WxDxH)230 x 400 x 650 mm

Weight

1 VE5.052,00

EUR6.011,88

EUR incl. Tax

please selectAdd to
basket

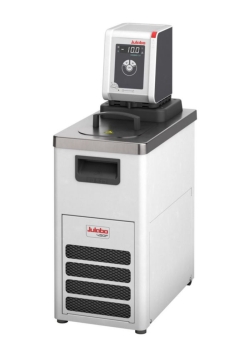

Code: 4.685 629

not in stock

TypeCD-450F

Volume bath3 ... 4 l

Temperature-30 ... 150 °C

RefrigerantR449A

Cooling capacity at 20 °C

Opening (WxD)130 x 150 mm

Bath depth

Ext. dim. (WxDxH)230 x 400 x 650 mm

Weight

1 VE5.052,00

EUR6.011,88

EUR incl. Tax

please selectAdd to
basket

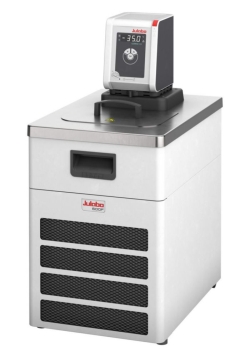

Code: 4.658 011

not in stock

TypeCD-600F

Volume bath5 ... 7.5 l

Temperature-35 ... 150 °C

RefrigerantR449A

Cooling capacity at 20 °C

Opening (WxD)220 x 150 mm

Bath depth

Ext. dim. (WxDxH)330 x 470 x 690 mm

Weight

1 VE5.732,00

EUR6.821,08

EUR incl. Tax

please selectAdd to
basket

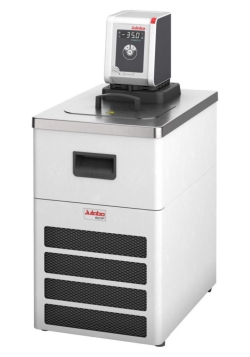

Code: 6.283 539

not in stock

TypeCD-601F

Volume bath8 ... 10 l

Temperature-35 ... 150 °C

RefrigerantR449A

Cooling capacity at 20 °C

Opening (WxD)220 x 150 mm

Bath depth

Ext. dim. (WxDxH)330 x 470 x 740 mm

Weight

1 VE6.152,00

EUR7.320,88

EUR incl. Tax

please selectAdd to
basket

Code: 4.692 234

not in stock

TypeCD-800F

Volume bath5 ... 7.5 l

Temperature-40 ... 150 °C

RefrigerantR1270

Cooling capacity at 20 °C

Opening (WxD)180 x 130 mm

Bath depth

Ext. dim. (WxDxH)330 x 470 x 700 mm

Weight

1 VE6.657,00

EUR7.921,83

EUR incl. Tax

please selectAdd to
basket

Code: 4.692 235

not in stock

TypeCD-1200F

Volume bath5 ... 7.5 l

Temperature-40 ... 150 °C

RefrigerantR1270

Cooling capacity at 20 °C

Opening (WxD)180 x 130 mm

Bath depth

Ext. dim. (WxDxH)330 x 470 x 700 mm

Weight

1 VE7.962,00

EUR9.474,78

EUR incl. Tax

please selectAdd to
basket

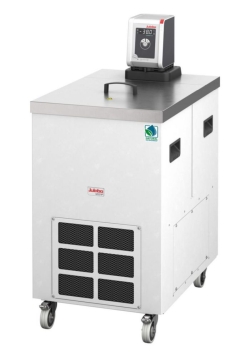

Code: 4.716 006

not in stock

TypeCD-1201F

Volume bath48 ... 56 l

Temperature-40 ... 100 °C

RefrigerantR1270

Cooling capacity at 20 °C

Opening (WxD)350 x 400 mm

Bath depth

Ext. dim. (WxDxH)450 x 640 x 950 mm

Weight

1 VE9.762,00

EUR11.616,78

EUR incl. Tax

please selectAdd to
basket

Type CD-200F

Volume bath 3 ... 4 l

Temperature -20 ... 150 °C

Refrigerant R134a

Cooling 0,22capacity at 20 °C

Opening (WxD) 130 x 150 mm

Bath depth

Ext. dim. 230 x 390 x 650 mm(WxDxH)

Weight

Cat. No. 4.658 008

Type CD-200F

Volume bath 3 ... 4 l

Temperature -20 ... 150 °C

Refrigerant R290

Cooling 0,22capacity at 20 °C

Opening (WxD) 130 x 150 mm

Bath depth

Ext. dim. 230 x 390 x 650 mm(WxDxH)

Weight

Cat. No. 4.693 939

Type CD-201F

Volume bath 3 ... 4 l

Temperature -20 ... 150 °C

Refrigerant R134a

Cooling 0,22capacity at 20 °C

Opening (WxD) 130 x 150 mm

Bath depth

Ext. dim. 440 x 410 x 440 mm(WxDxH)

Weight

Cat. No. 4.658 009

Type CD-300F

Volume bath 3 ... 4 l

Temperature -25 ... 150 °C

Refrigerant R134a

Cooling 0,31capacity at 20 °C

Opening (WxD) 130 x 150 mm

Bath depth

Ext. dim. 240 x 420 x 660 mm(WxDxH)

Weight

Cat. No. 4.658 010

Type CD-310F

Volume bath 3 ... 4 l

Temperature -30 ... 150 °C

Refrigerant R290

Cooling 0,31capacity at 20 °C

Opening (WxD) 130 x 150 mm

Bath depth

Ext. dim. 230 x 400 x 650 mm(WxDxH)

Weight

Cat. No. 4.685 626

Type CD-310F

Volume bath 3 ... 4 l

Temperature -30 ... 150 °C

Refrigerant R449A

Cooling 0,31capacity at 20 °C

Opening (WxD) 130 x 150 mm

Bath depth

Ext. dim. 230 x 400 x 650 mm(WxDxH)

Weight

Cat. No. 4.685 627

Type CD-449F

Volume bath 20 ... 26 l

Temperature -32 ... 150 °C

Refrigerant R290

Cooling 0,45capacity at 20 °C

Opening (WxD) 280 x 350 mm

Bath depth

Ext. dim. 370 x 590 x 690 mm(WxDxH)

Weight

Cat. No. 4.687 382

Type CD-450F

Volume bath 3 ... 4 l

Temperature -30 ... 150 °C

Refrigerant R290

Cooling 0,45capacity at 20 °C

Opening (WxD) 130 x 150 mm

Bath depth

Ext. dim. 230 x 400 x 650 mm(WxDxH)

Weight

Cat. No. 4.685 628

Type CD-450F

Volume bath 3 ... 4 l

Temperature -30 ... 150 °C

Refrigerant R449A

Cooling 0,45capacity at 20 °C

Opening (WxD) 130 x 150 mm

Bath depth

Ext. dim. 230 x 400 x 650 mm(WxDxH)

Weight

Cat. No. 4.685 629

Type CD-600F

Volume bath 5 ... 7.5 l

Temperature -35 ... 150 °C

Refrigerant R449A

Cooling 0,6capacity at 20 °C

Opening (WxD) 220 x 150 mm

Bath depth

Ext. dim. 330 x 470 x 690 mm(WxDxH)

Weight

Cat. No. 4.658 011

Type CD-601F

Volume bath 8 ... 10 l

Temperature -35 ... 150 °C

Refrigerant R449A

Cooling 0,6capacity at 20 °C

Opening (WxD) 220 x 150 mm

Bath depth

Ext. dim. 330 x 470 x 740 mm(WxDxH)

Weight

Cat. No. 6.283 539

Type CD-800F

Volume bath 5 ... 7.5 l

Temperature -40 ... 150 °C

Refrigerant R1270

Cooling 0,85capacity at 20 °C

Opening (WxD) 180 x 130 mm

Bath depth

Ext. dim. 330 x 470 x 700 mm(WxDxH)

Weight

Cat. No. 4.692 234

Type CD-1200F

Volume bath 5 ... 7.5 l

Temperature -40 ... 150 °C

Refrigerant R1270

Cooling 1,25capacity at 20 °C

Opening (WxD) 180 x 130 mm

Bath depth

Ext. dim. 330 x 470 x 700 mm(WxDxH)

Weight

Cat. No. 4.692 235

Type CD-1201F

Volume bath 48 ... 56 l

Temperature -40 ... 100 °C

Refrigerant R1270

Cooling 1,25capacity at 20 °C

Opening (WxD) 350 x 400 mm

Bath depth

Ext. dim. 450 x 640 x 950 mm(WxDxH)

Weight

Cat. No. 4.716 006

Accessories:

Hose olives for Refrigerated circulators

from 26,00 €

Tubing insulations for refrigerated and heating circulators

from 22,00 €

Test tube racks for heating and refrigerated circulators MAGIO™/DYNEO™/CORIO™

from 101,00 €

Lockable bath cover for heating and refrigerated circulators MAGIO™/DYNEO™/CORIO™

1.040,00 €

Telescopic bridges for heating and refrigerated circulators

from 460,00 €

Variable platform for heating and refrigerated circulators MAGIO™ / DYNEO™ / CORIO™

375,00 €

Temperature hoses, stainless steel 1.4404, single insulation

from 255,00 €

Water bath preservative liquid Aqua Stabil

Tempering liquids

Item added to basket.

Tempering liquids

continue shopping go to basket

TypeCapacity

TemperaturePKPrice/Unit

EUR

Thermal MCode: 6.100 525

not in stock10

70 ... 170 °C1530,00

€

630,70

€

incl. Tax Add to
basket

Thermal MCode: 6.051 961

not in stock5

70 ... 170 °C1265,00

€

315,35

€

incl. Tax Add to
basket

Thermal HSCode: 6.100 527

not in stock10

50 ... 250 °C1690,00

€

821,10

€

incl. Tax Add to
basket

Thermal HSCode: 6.100 528

not in stock5

50 ... 250 °C1345,00

€

410,55

€

incl. Tax Add to
basket

Thermal HYCode: 6.100 529

not in stock10

-80 ... 55 °C1820,00

€

975,80

€

incl. Tax Add to
basket

Thermal HYCode: 6.100 530

not in stock5

-80 ... 55 °C1410,00

€

487,90

€

incl. Tax Add to
basket

Thermal H20SCode: 6.100 533

not in stock10

0 ... 220 °C1900,00

€

1.071,00

€

incl. Tax Add to
basket

Thermal H20SCode: 6.100 534

not in stock5

0 ... 220 °C1450,00

€

535,50

€

incl. Tax Add to
basket

Thermal H5Code: 6.100 531

not in stock10

-50 ... 105 °C1870,00

€

1.035,30

€

incl. Tax Add to
basket

Thermal H5Code: 6.100 532

not in stock5

-50 ... 105 °C1435,00

€

517,65

€

incl. Tax Add to
basket

Thermal GCode: 6.206 171

not in stock10

-30 ... 80 °C1246,00

€

292,74

€

incl. Tax Add to
basket

Thermal GCode: 6.229 933

not in stock5

-30 ... 80 °C1123,00

€

146,37

€

incl. Tax Add to
basket

Thermal H10Code: 6.222 284

not in stock10

-40 ... 180 °C1870,00

€

1.035,30

€

incl. Tax Add to
basket

Thermal H10Code: 6.207 217

not in stock5

-40 ... 180 °C1435,00

€

517,65

€

incl. Tax Add to
basket

Code: 6.100 525

not in stock

TypeThermal M

Capacity

Temperature70 ... 170 °C

PK1

1 VE530,00

€

EUR630,70

€

EUR incl. Tax

please selectAdd to
basket

Code: 6.051 961

not in stock

TypeThermal M

Capacity

Temperature70 ... 170 °C

PK1

1 VE265,00

€

EUR315,35

€

EUR incl. Tax

please selectAdd to
basket

Code: 6.100 527

not in stock

TypeThermal HS

Capacity

Temperature50 ... 250 °C

PK1

1 VE690,00

€

EUR821,10

€

EUR incl. Tax

please selectAdd to
basket

Code: 6.100 528

not in stock

TypeThermal HS

Capacity

Temperature50 ... 250 °C

PK1

1 VE345,00

€

EUR410,55

€

EUR incl. Tax

please selectAdd to
basket

Code: 6.100 529

not in stock

TypeThermal HY

Capacity

Temperature-80 ... 55 °C

PK1

1 VE820,00

€

EUR975,80

€

EUR incl. Tax

please selectAdd to
basket

Code: 6.100 530

not in stock

TypeThermal HY

Capacity

Temperature-80 ... 55 °C

PK1

1 VE410,00

€

EUR487,90

€

EUR incl. Tax

please selectAdd to
basket

Code: 6.100 533

not in stock

TypeThermal H20S

Capacity

Temperature0 ... 220 °C

PK1

1 VE900,00

€

EUR1.071,00

€

EUR incl. Tax

please selectAdd to
basket

Code: 6.100 534

not in stock

TypeThermal H20S

Capacity

Temperature0 ... 220 °C

PK1

1 VE450,00

€

EUR535,50

€

EUR incl. Tax

please selectAdd to
basket

Code: 6.100 531

not in stock

TypeThermal H5

Capacity

Temperature-50 ... 105 °C

PK1

1 VE870,00

€

EUR1.035,30

€

EUR incl. Tax

please selectAdd to
basket

Code: 6.100 532

not in stock

TypeThermal H5

Capacity

Temperature-50 ... 105 °C

PK1

1 VE435,00

€

EUR517,65

€

EUR incl. Tax

please selectAdd to
basket

Code: 6.206 171

not in stock

TypeThermal G

Capacity

Temperature-30 ... 80 °C

PK1

1 VE246,00

€

EUR292,74

€

EUR incl. Tax

please selectAdd to
basket

Code: 6.229 933

not in stock

TypeThermal G

Capacity

Temperature-30 ... 80 °C

PK1

1 VE123,00

€

EUR146,37

€

EUR incl. Tax

please selectAdd to
basket

Code: 6.222 284

not in stock

TypeThermal H10

Capacity

Temperature-40 ... 180 °C

PK1

1 VE870,00

€

EUR1.035,30

€

EUR incl. Tax

please selectAdd to
basket

Code: 6.207 217

not in stock

TypeThermal H10

Capacity

Temperature-40 ... 180 °C

PK1

1 VE435,00

€

EUR517,65

€

EUR incl. Tax

please selectAdd to
basket

Type Thermal M

Capacity

Temperature 70 ... 170 °C

Cat. No. 6.100 525

Type Thermal M

Capacity

Temperature 70 ... 170 °C

Cat. No. 6.051 961

Type Thermal HS

Capacity

Temperature 50 ... 250 °C

Cat. No. 6.100 527

Type Thermal HS

Capacity

Temperature 50 ... 250 °C

Cat. No. 6.100 528

Type Thermal HY

Capacity

Temperature -80 ... 55 °C

Cat. No. 6.100 529

Type Thermal HY

Capacity

Temperature -80 ... 55 °C

Cat. No. 6.100 530

Type Thermal H20S

Capacity

Temperature 0 ... 220 °C

Cat. No. 6.100 533

Type Thermal H20S

Capacity

Temperature 0 ... 220 °C

Cat. No. 6.100 534

Type Thermal H5

Capacity

Temperature -50 ... 105 °C

Cat. No. 6.100 531

Type Thermal H5

Capacity

Temperature -50 ... 105 °C

Cat. No. 6.100 532

Type Thermal G

Capacity

Temperature -30 ... 80 °C

Cat. No. 6.206 171

Type Thermal G

Capacity

Temperature -30 ... 80 °C

Cat. No. 6.229 933

Type Thermal H10

Capacity

Temperature -40 ... 180 °C

Cat. No. 6.222 284

Type Thermal H10

Capacity

Temperature -40 ... 180 °C

Cat. No. 6.207 217

Refrigerated circulators CORIO™ CDJulaboAlternate products:

Refrigerated circulators CORIO™ CD / Julabo

Accessories:

Address
