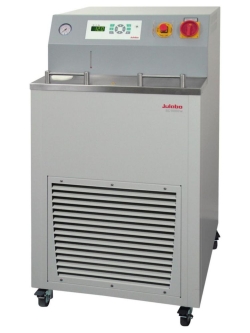

Recirculating cooler SemiChill SC, water-cooled
The powerful SemiChill recirculating coolers are specifically designed for applications in the semiconductor industry. The modular design permits individual device configuration.
- No side ventilation slots: devices can be placed side by side
- Integrated handles and castors
- Industrial mains switch and emergency stop
- Pressure indicator
- Front filling port
- Precise PID temperature control
- ATC3 3-point calibration
- Warning and safety functions
- Removable ventilation grid for easy removal of dust
| Material bath: | Stainless steel |
| Temperature: | 5 ... 35 °C |
| Temperature stability: | ±0,1 °C |
| Max. flow rate: | 33 l/min |
| Max. delivery pressure: | 3.5 bar |
| Operation: | Membrane keyboard |
| Refrigerant: | R452A |
| IP code: | IP 21 |
TypeVolume bathCooling
capacity at 20 °C
(WxDxH)Power supplyWeight
capacity at 20 °C
kW
Ext. dim. (WxDxH)Power supplyWeight
kg
Plug typePKPrice/UnitEUR
not in stock21 ... 33 l2,5kW
490 x 620 x 1,050 mm230 V, 50 Hz122.5kg
EU116.400,00€
19.516,00€
incl. Tax Add tobasket
not in stock43 ... 60 l5kW
590 x 670 x 1,120 mm400 V·3/N/PE, 50 Hz153kg
CEE118.200,00€
21.658,00€
incl. Tax Add tobasket
not in stock43 ... 60 l10kW
590 x 670 x 1,120 mm400 V·3/N/PE, 50 Hz155kg
CEE121.800,00€
25.942,00€
incl. Tax Add tobasket
not in stockTypeSC2500w
Volume bath21 ... 33 l
Cooling
capacity at 20 °C
kW
2,5kW
Ext. dim.
(WxDxH)490 x 620 x 1,050 mm
Power supply230 V, 50 Hz
Weight
kg
122.5kg
Plug typeEU
PK1
1 VE16.400,00
€
EUR19.516,00€
EUR incl. Taxplease selectAdd to
basket
basket
not in stockTypeSC5000w
Volume bath43 ... 60 l
Cooling
capacity at 20 °C
kW
5kW
Ext. dim.
(WxDxH)590 x 670 x 1,120 mm
Power supply400 V·3/N/PE, 50 Hz
Weight
kg
153kg
Plug typeCEE
PK1
1 VE18.200,00
€
EUR21.658,00€
EUR incl. Taxplease selectAdd to
basket
basket
not in stockTypeSC10000w
Volume bath43 ... 60 l
Cooling
capacity at 20 °C
kW
10kW
Ext. dim.
(WxDxH)590 x 670 x 1,120 mm
Power supply400 V·3/N/PE, 50 Hz
Weight
kg
155kg
Plug typeCEE
PK1
1 VE21.800,00
€
EUR25.942,00€
EUR incl. Taxplease selectAdd to
basket
basket
