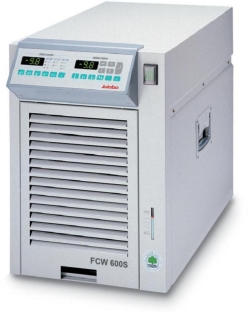

Recirculating cooler FCW, water-cooled
The FC recirculating coolers offer high temperature stability and are equipped with an integrated heater. This makes them suitable for both heating and cooling tasks.
- Adjustable ratio of feed and return temperatures (DBGM)
- Easy filling via front-mounted filling system
- Circulation pump activation during the filling process
- Bright MULTI-DISPLAY (LED) shows actual/setpoint values
- Over/under-temperature warning functions with intermittent audible signal
- Integrated freezing and dry-running protection
- Liquid level indicator via sight glass on the front panel
- Self-test, sensor operation monitoring, pump motor and compressor overload protection
- Complete shutdown with audible alarm in the event of a fault
- Removable venting grid for easy dust removal
- RS232 interface for PC connection
- Pressure indicator
| Material bath: | Stainless steel |
| Temperature stability: | ±0,2 °C |
| Type of display: | LED |
| Refrigerant: | R134a |
| Heating capacity: | 1.2 kW |
| Ext. dim. (WxDxH): | 360 x 540 x 490 mm |
| Weight: | 45 kg |
| IP code: | IP 21 |
TypeVolume bathTemperatureMax. flow rate
pressure
capacity at 20 °C
l/min
Max. delivery pressure
bar
Cooling capacity at 20 °C
kW
PKPrice/UnitEUR
not in stock6 ... 8 l-20 ... 80 °C20l/min
0.5bar
0,6kW
18.380,00€
9.972,20€
incl. Tax Add tobasket
not in stock6 ... 8 l-10 ... 80 °C22l/min
1.2bar
0,5kW
18.930,00€
10.626,70€
incl. Tax Add tobasket
not in stockTypeFCW600
Volume bath6 ... 8 l
Temperature-20 ... 80 °C
Max. flow rate
l/min
20l/min
Max. delivery
pressure
bar
0.5bar
Cooling
capacity at 20 °C
kW
0,6kW
PK1
1 VE8.380,00
€
EUR9.972,20€
EUR incl. Taxplease selectAdd to
basket
basket
not in stockTypeFCW600S
Volume bath6 ... 8 l
Temperature-10 ... 80 °C
Max. flow rate
l/min
22l/min
Max. delivery
pressure
bar
1.2bar
Cooling
capacity at 20 °C
kW
0,5kW
PK1
1 VE8.930,00
€
EUR10.626,70€
EUR incl. Taxplease selectAdd to
basket
basket
