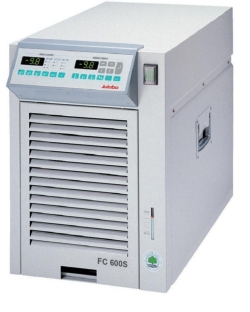

Recirculating cooler FC, air-cooled / Julabo
The FC recirculating coolers offer high temperature stability and are equipped with an integrated heater. This makes them suitable for both heating and cooling tasks.
- Adjustable ratio of feed and return temperatures (DBGM)
- Easy filling via front-mounted filling system
- Circulation pump activation during the filling process
- Bright MULTI-DISPLAY (LED) shows actual/setpoint values
- Over/under-temperature warning functions with intermittent audible signal
- Integrated freezing and dry-running protection
- Liquid level indicator via sight glass on the front panel
- Self-test, sensor operation monitoring, pump motor and compressor overload protection
- Complete shutdown with audible alarm in the event of a fault
- Removable venting grid for easy dust removal
- RS232 interface for PC connection
- Pressure indicator
| Material bath: | Stainless steel |
| Temperature stability: | ±0,2 °C |
| Type of display: | LED |
| Refrigerant: | R134a |
| Heating capacity: | 1.2 kW |
| IP code: | IP 21 |
TypeVolume bathTemperatureMax. flow rate
pressure
capacity at 20 °C
(WxDxH)Weight
l/min
Max. delivery pressure
bar
Cooling capacity at 20 °C
kW
Ext. dim. (WxDxH)Weight
kg
PKPrice/UnitEUR
not in stock6 ... 8 l-20 ... 80 °C20l/min
0.5bar
0,6kW
360 x 540 x 490 mm48kg
17.450,00€
8.865,50€
incl. Tax Add tobasket
not in stock6 ... 8 l-10 ... 80 °C22l/min
1.2bar
0,5kW
360 x 540 x 490 mm44kg
18.000,00€
9.520,00€
incl. Tax Add tobasket
not in stock8 ... 11 l-20 ... 80 °C20l/min
0.5bar
1,3kW
460 x 610 x 490 mm65kg
18.990,00€
10.698,10€
incl. Tax Add tobasket
not in stock8 ... 11 l-15 ... 80 °C22l/min
1.2bar
1,2kW
460 x 610 x 490 mm66kg
19.500,00€
11.305,00€
incl. Tax Add tobasket
not in stock8 ... 11 l-20 ... 80 °C20l/min
0.5bar
1,65kW
460 x 610 x 490 mm65kg
110.060,00€
11.971,40€
incl. Tax Add tobasket
not in stock8 ... 11 l-15 ... 80 °C22l/min
1.2bar
1,55kW
460 x 610 x 490 mm66kg
110.580,00€
12.590,20€
incl. Tax Add tobasket
not in stockTypeFC600
Volume bath6 ... 8 l
Temperature-20 ... 80 °C
Max. flow rate
l/min
20l/min
Max. delivery
pressure
bar
0.5bar
Cooling
capacity at 20 °C
kW
0,6kW
Ext. dim.
(WxDxH)360 x 540 x 490 mm
Weight
kg
48kg
PK1
1 VE7.450,00
€
EUR8.865,50€
EUR incl. Taxplease selectAdd to
basket
basket
not in stockTypeFC600S
Volume bath6 ... 8 l
Temperature-10 ... 80 °C
Max. flow rate
l/min
22l/min
Max. delivery
pressure
bar
1.2bar
Cooling
capacity at 20 °C
kW
0,5kW
Ext. dim.
(WxDxH)360 x 540 x 490 mm
Weight
kg
44kg
PK1
1 VE8.000,00
€
EUR9.520,00€
EUR incl. Taxplease selectAdd to
basket
basket
not in stockTypeFC1200
Volume bath8 ... 11 l
Temperature-20 ... 80 °C
Max. flow rate
l/min
20l/min
Max. delivery
pressure
bar
0.5bar
Cooling
capacity at 20 °C
kW
1,3kW
Ext. dim.
(WxDxH)460 x 610 x 490 mm
Weight
kg
65kg
PK1
1 VE8.990,00
€
EUR10.698,10€
EUR incl. Taxplease selectAdd to
basket
basket
not in stockTypeFC1200S
Volume bath8 ... 11 l
Temperature-15 ... 80 °C
Max. flow rate
l/min
22l/min
Max. delivery
pressure
bar
1.2bar
Cooling
capacity at 20 °C
kW
1,2kW
Ext. dim.
(WxDxH)460 x 610 x 490 mm
Weight
kg
66kg
PK1
1 VE9.500,00
€
EUR11.305,00€
EUR incl. Taxplease selectAdd to
basket
basket
not in stockTypeFC1600
Volume bath8 ... 11 l
Temperature-20 ... 80 °C
Max. flow rate
l/min
20l/min
Max. delivery
pressure
bar
0.5bar
Cooling
capacity at 20 °C
kW
1,65kW
Ext. dim.
(WxDxH)460 x 610 x 490 mm
Weight
kg
65kg
PK1
1 VE10.060,00
€
EUR11.971,40€
EUR incl. Taxplease selectAdd to
basket
basket
not in stockTypeFC1600S
Volume bath8 ... 11 l
Temperature-15 ... 80 °C
Max. flow rate
l/min
22l/min
Max. delivery
pressure
bar
1.2bar
Cooling
capacity at 20 °C
kW
1,55kW
Ext. dim.
(WxDxH)460 x 610 x 490 mm
Weight
kg
66kg
PK1
1 VE10.580,00
€
EUR12.590,20€
EUR incl. Taxplease selectAdd to
basket
basket
