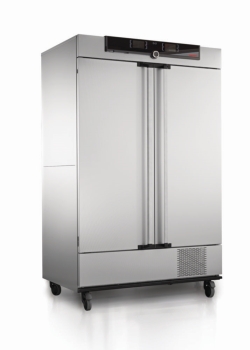

Climate Chambers ICH, with humidity control

The climate chamber generation with the unique ControlCOCKPIT for a quick and intuitive operation. Unparalleled temperature and humidity homogeneity for long-term stable ambient conditions.

• PID microprocessor control with integrated auto-diagnostic system
• Interior stainless steel 1.4301 (ASTM 304), deep-drawn
• Structured stainless steel housing, rear of zinc-plated steel
• High-Operation and adjustment of all parameters directly at the ControlCOCKPIT temperature connectors on the rear of the appliance for single-phase power connection according to country specific systems and IEC standards
• Internal data logger with a storage capacity of at least 10 years
• German, English, French, Spanish language settings available on the ControlCOCKPIT
• Digital backwards counter with target time setting adjustable between 1 minute and 99 days
• The SetpointWAIT function guarantees that the process time does not start until the set temperature is reached at all measuring points - optional for temperature values recorded by the freely positionable Pt100 sensors inside the chamber
• Adjustment of three calibration values for temperature and additional appliance specific parameters directly at the ControlCOCKPIT, for example relative humidity
• Moisture tight standard entry port, at the back, 40 mm inner diameter, can be closed by silicone stopper

TwinDISPLAY: ControlCOCKPIT with two TFT colour displays

• Available parameters on the ControlCOCKPIT: Temperature (Celsius or Fahrenheit), programme time, relative humidity, time zones, summertime/wintertime
• Two Pt100 sensors DIN class A in a 4-wire circuit for mutual monitoring, taking over functions in case of an error
• AtmoCONTROL software on a USB stick for programming, managing and transferring programmes via Ethernet interface or USB port
• ControlCOCKPIT with USB port for uploading programmes, reading out protocol logs, activating the User-ID function
• Displaying of already logged protocol data on the ControlCOCKPIT (max 10,000 values correspond to approx. 1 week)
• Ethernet interface on the rear of the appliance for reading out the protocol log and for uploading programmes and for online logging
• Multiple overtemperature protection: Electronic temperature monitoring TWW/TWB (protection class 3.3 or 2 and mechanical temperature limiter TB (protection class 1) acc. to DIN 12880, AutoSAFETY automatically adjusts to the set value within a freely adjustable tolerance range. Setting individual MIN/MAX values for over/undertemperature alarm
